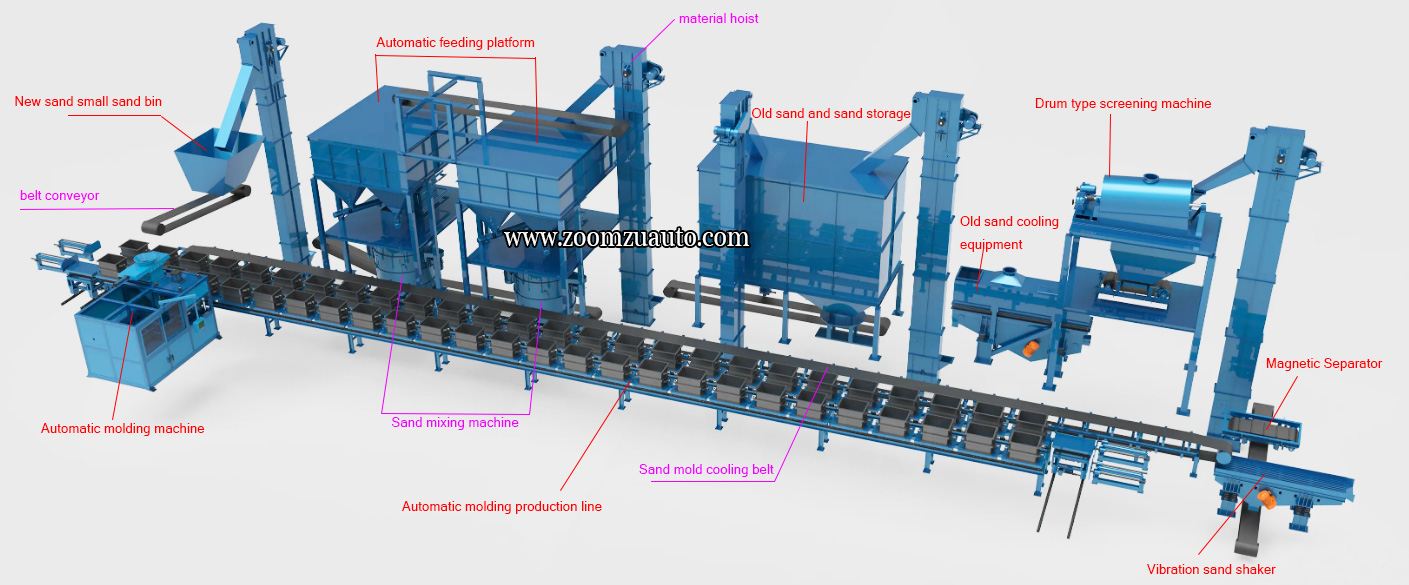

The function of the wet sand treatment system is to provide the casting sand that can be used for molding for the casting molding machine. When the poured sand mold separates the casting from the casting sand through the vibration machine tool, the old casting sand is then re-entered into the sand treatment system, and becomes loose casting sand after being processed by the crushing equipment, screening equipment and dust removal and cooling equipment. Finally, the sand is stored in the designated container for static cooling. When the casting molding machine is running for production, the old sand will be mixed again with new sand, bentonite, coal powder, water and other materials through the sand mixer. The mixed sand can meet the conditions of casting sand and then be transported by belt to the casting molding machine for use. Tidal sand treatment system needs to design appropriate treatment capacity according to the sand demand of molding machine and production line.
- Explore specific introductions
-
1. Vibration crushing of sand molds, casting and sand separation2. High temperature cast old sand magnetic iron blocks are transported by belt to a certain height and position3. Rolling screening of old sand to remove impurities and some iron blocks4. After cooling the old sand, remove the dust from the old sand through vacuum equipment5. After lifting the old sand, perform a second fine screening of the old sand6. Store old sand in a specific sand bin to cool down and wait for reuse7. Adding new casting sand to the old sand and mixing it with materials to obtain casting sand8. Transport the new casting sand to the molding machine
- Green sand treatment system >>
-
01.

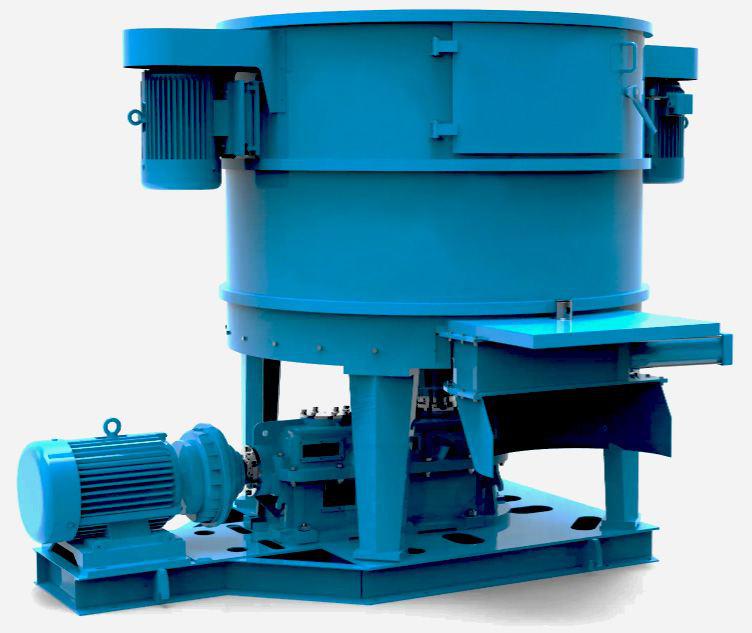

GS High-speed rotor sand mixer
Zoomzu -GS
This equipment is mainly used for mixing and mixing molding sand in the casting workshop. It can not only mix single casting sand for casting molding machines, but also dry sand, self-hardening sand, surface sand and back sand. It can also be used for mix
-
02.
Boiling cooling equipment for used foundry sand
Zoomzu -S86
The modified equipment is used for the transportation, cooling, and dust removal of old sand (hot casting sand) used for self hardening sand and clay sand recycling in the casting workshop. It is an ideal heat exchange and cooling cooling device. 1) The
-
03.

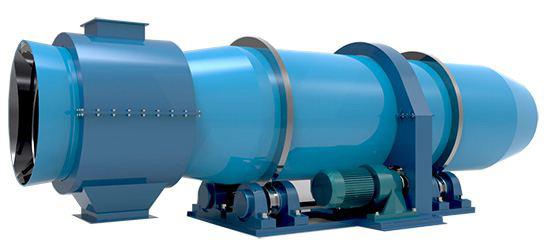

Rolling crushing and screening equipment
Zoomzu -S43
This equipment is used for preliminary screening of cast sand, secondary crushing of smaller old sand blocks, and dust removal and cooling. The built-in hexagonal cylindrical screen of the equipment has a certain inclination angle. Through continuous roll
-
04.

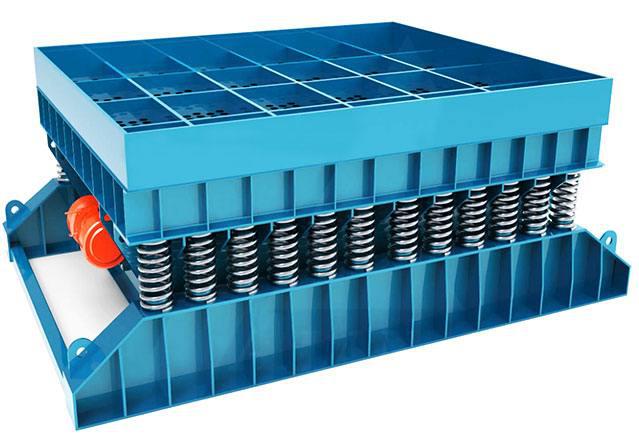

Conveyor type vibrating shakeout machine
Zoomzu -L25
This series of sand removal equipment separates the sand mold from the casting through vibration. Internally, the vibrating mesh size and shape are designed based on the volume, size, and external structure of the casting. After entering the modified equi
-
05.

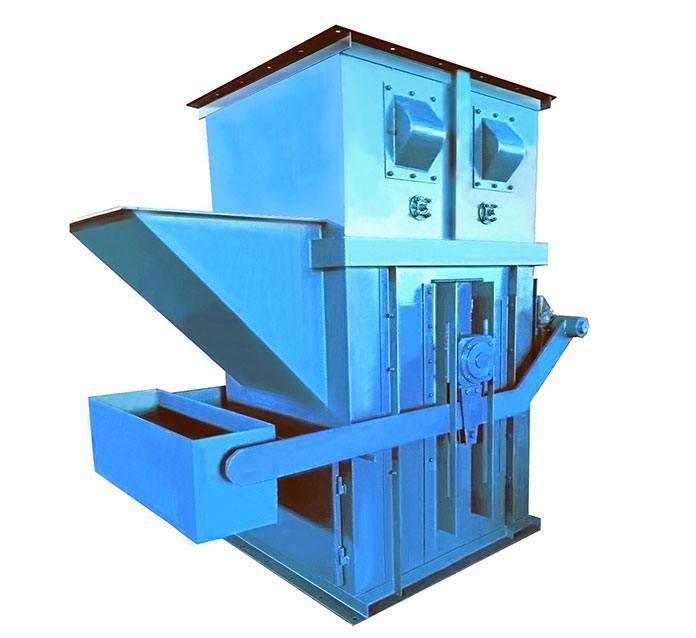

Material bucket lifting device
Zoomzu -Y37
This equipment is a commonly used vertical conveying equipment in mechanized casting workshops, which lifts and transports the bottom material to a specific high position, saving space in the workshop. It is mainly used to lift old sand, waste sand, new s
-
06.

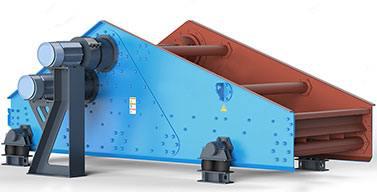

Inertia linear vibration fine screening machine
Zoomzu -S45
This series of equipment is a new type of efficient screening equipment, mainly used for fine screening of new or old sand in casting workshops, and can also be used for screening other granular and dispersed materials. 1. This feature is excited by two
-
07.

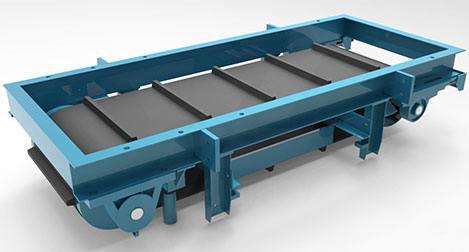

Suspended advanced magnetic separator
Zoomzu -S99
This device is widely used in industries such as metallurgy, mining, and casting. It is used in casting production to adsorb and screen iron blocks doped in old cast sand after pouring, effectively separating magnetic metal objects from the sand layer. Th
-
08.

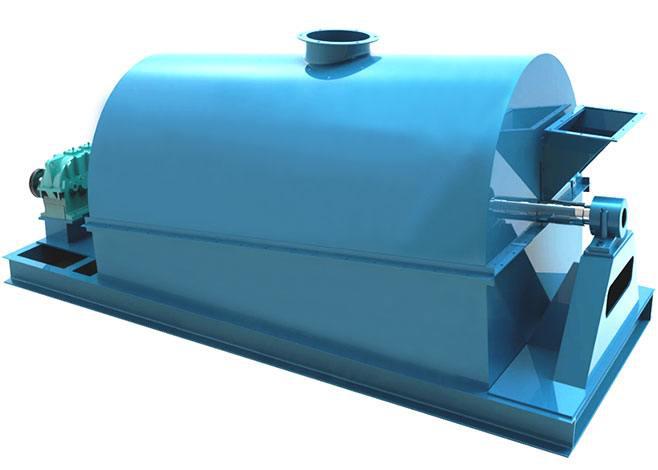

Double rotary mixing and cooling equipment
Zoomzu -S83
This equipment is mainly suitable for cooling clay sand and old sand. Fully stir and mix the old sand to ensure uniform temperature, humidity, and composition. While cooling, complete the pre mixing process to prepare high-quality molding sand. 1. The eq
-
09.
Drum type sand removal equipment
Zoomzu -L32
This equipment is mainly used for sand removal treatment of the cooled sand mold after pouring at the tail of the molding line, as well as cleaning and cooling of the castings. This equipment is composed of a front drum body, an initial sand removal secti
-
010.

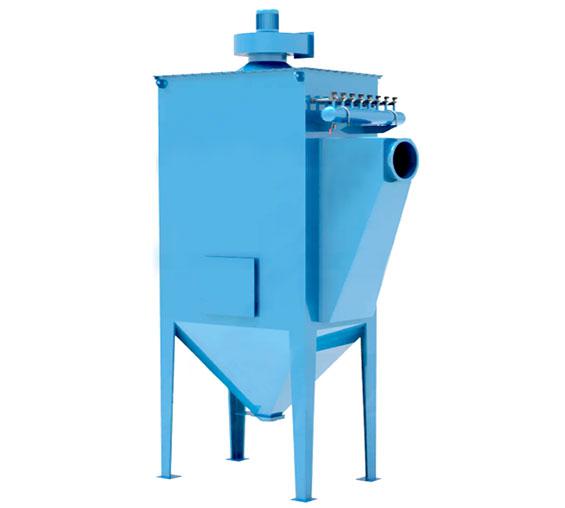

Casting sand dust removal equipment
Zoomzu -LMF
The dust laden gas is sucked into the dust collector through the induced draft fan, and filtered by the filter bag. The dust is trapped on the outer surface of the filter bag, while the clean gas is discharged through the inside of the filter bag. When th
-
011.
Automated electrical control system
Zoomzu -ECU
The dust laden gas is sucked into the dust collector through the induced draft fan, and filtered by the filter bag. The dust is trapped on the outer surface of the filter bag, while the clean gas is discharged through the inside of the filter bag. When th
